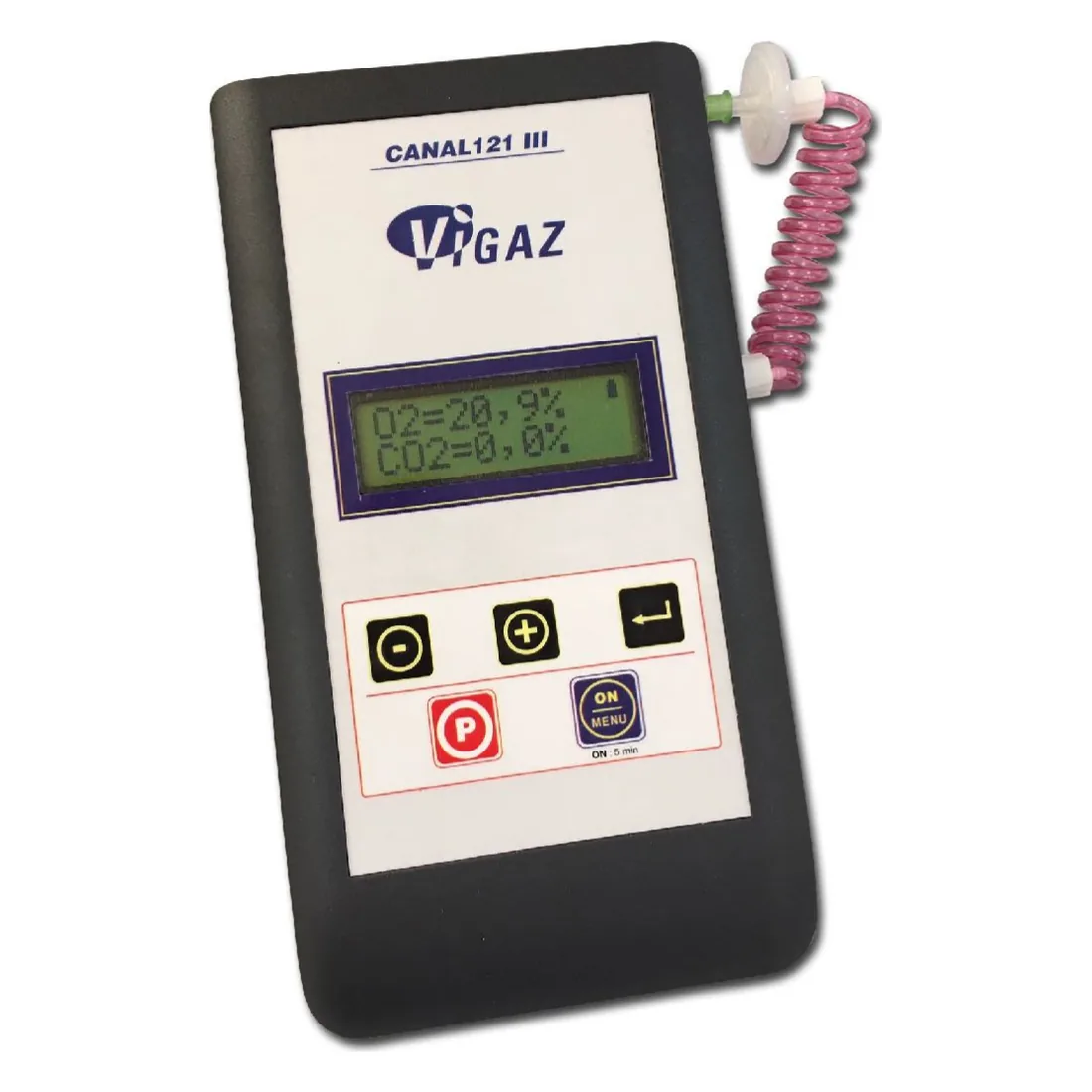

CANAL121 III - portable O₂ and CO₂ analyzer
What it is for and who uses it
The CANAL121 III is a portable, rechargeable analyzer that measures residual oxygen and CO₂. According to the VIGAZ data sheet, it is used to measure protective atmospheres in all types of food packaging and atmospheres in fruit storage rooms. It is designed for occasional use in small-scale production and allows quick, mobile checks. It switches off automatically after 5 minutes of inactivity and is recharged by placing it on its base.
Specifications
According to the VIGAZ technical data sheet:
| Parameter | Value |
|---|---|
| Measured gases | O₂ and CO₂ |
| O₂ sensor | Electrochemical · range 0-100 % · accuracy ±1 % relative · resolution 0.1 % · response (T90) 10 s · service life 4 years in air |
| CO₂ sensor | Infrared · range 0-100 % · accuracy ±2% · resolution 0.1 % · response (T90) 12 s · service life unlimited |
| Operating temperature | +5 to +40 °C |
| Protection | IP41 |
| Display | 4-line digital |
| Power supply | 9 V NiMH, rechargeable |
| Charger | 100-240 V - 50/60 Hz |
| Battery life | > 36 h |
| Dimensions | 20 x 11 x 4.5 cm |
| Weight | 560 g |
| Functions | Calibration menu protected by a 4-digit security code · values locked after each measurement · timed pump: programmable delay from 0 to 20 s; automatic mode: first 5 s suction and, if the measurement has not stabilised, a second 5 s suction · low sample withdrawal volume · automatic switch-off after 5 minutes of inactivity to save battery · long-life O₂ sensor |
| Calibration | With standard gases: O₂ zero / O₂ calibration |
| Supplied with | Charging base with charger · spiral sampling kit · foams, filters and needles · calibration certificate and instructions for use |
Scroll horizontally to see the whole table.
Data according to the manufacturer's (VIGAZ) technical data sheet.
How it is used, according to the data sheet: insert the needle through a septum and press "P"; the pump draws the sample for the programmed time, an hourglass shows the progress of the measurement and, once the reading has stabilised, it is locked on the display. There is no need to draw in air between one measurement and the next.
Position in the range
The CANAL121 III is the portable model in the range measuring O₂ and CO₂. The VIGAZ range also includes the CANAL111 II (O₂) and the BOX100 II (O₂) and BOX120 II (O₂ and CO₂) models.
